| Features |
|---|
★ 10.1”wide screen industrial LCD Panel, 1280x800 resolution
★ 1500 nits high brightness
★ Wide viewing angle 170°/170°
★ Wide-temperature LCD panel, operating temperature -20-70°C
★ Narrow-bezel true-flat PCAP touch screen
★ 7H Hardness tempered cover glass
★ 10-point multi-touch , supports Nextech stylus
★ Metal housing with multiple mounting options
★ Made in Taiwan, 3-year warranty, designed for harsh environments
★ Optional remote control via RS-232 or DDC/CI
★ Optional auto dimming function (with Light Sensor)
★ Optional AG coating/UV-resistant/Antibacterial/Privacy filter surface treatment
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 10.1 inch |
| Visible Area | 216.96x135.6 mm |
| Resolution | 1280x800 |
| Display Ratio | 16:10 |
| Color Depth | 1.62M Colors |
| Brightness (nits) | 1500 nits |
| Contrast Ratio | 1300:1 |
| Pixel Pitch | 0.1695x0.1695 mm |
| Response Time | 25 msec. |
| Viewing Angle | 170°/170° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | -20°~70°C |
| Storage Temp. | -30°~70°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.1±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

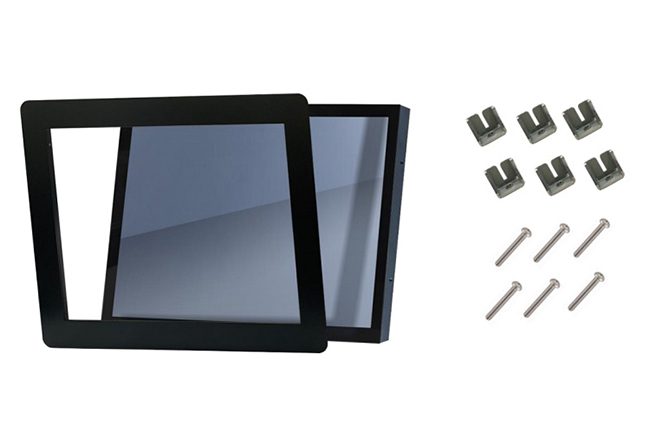

Panel Mount Kits |

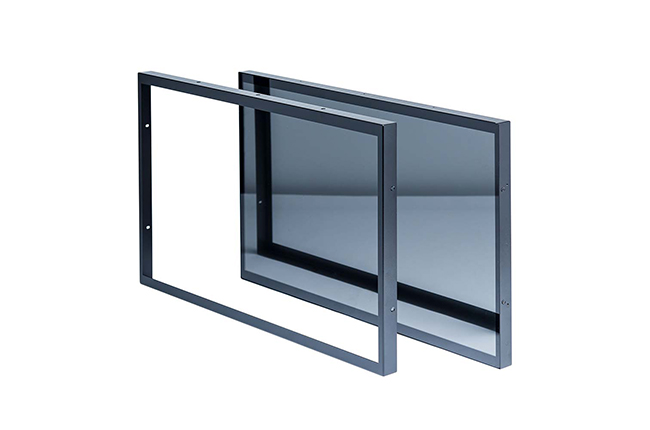

IP65 Waterproof Protection Front Frame |

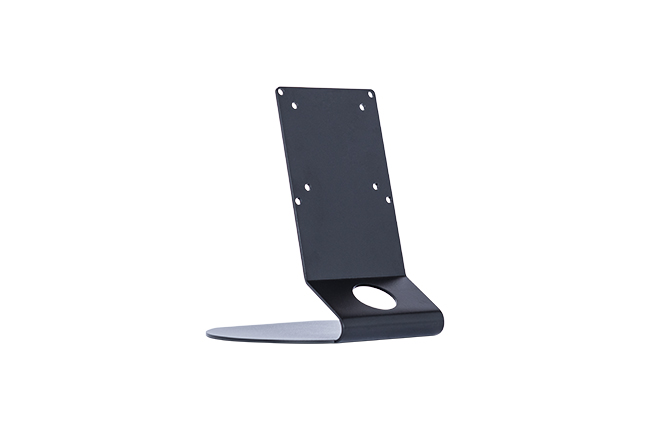

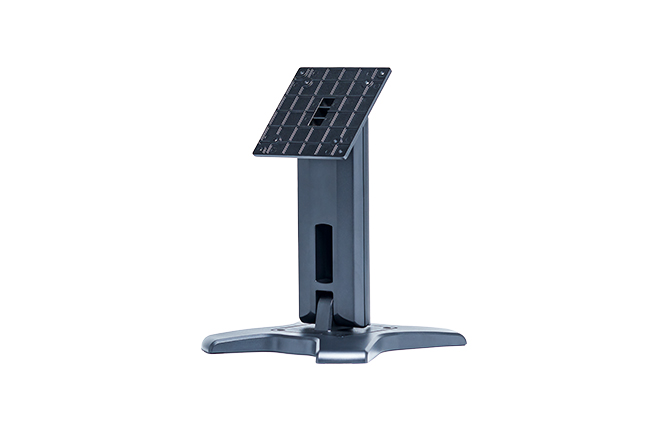

Desktop Stand B type |
Desktop Stand L type |

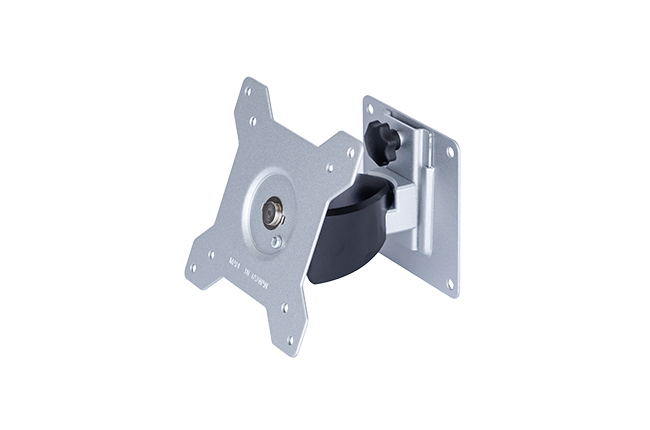

Wall Mount Bracket |
 |
