| Features |
|---|

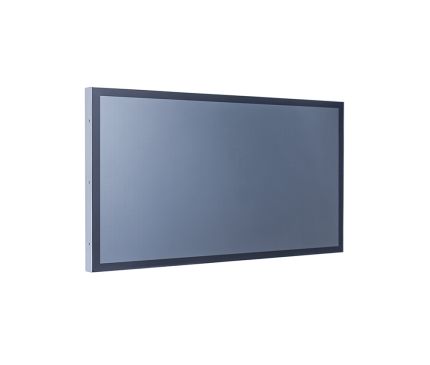

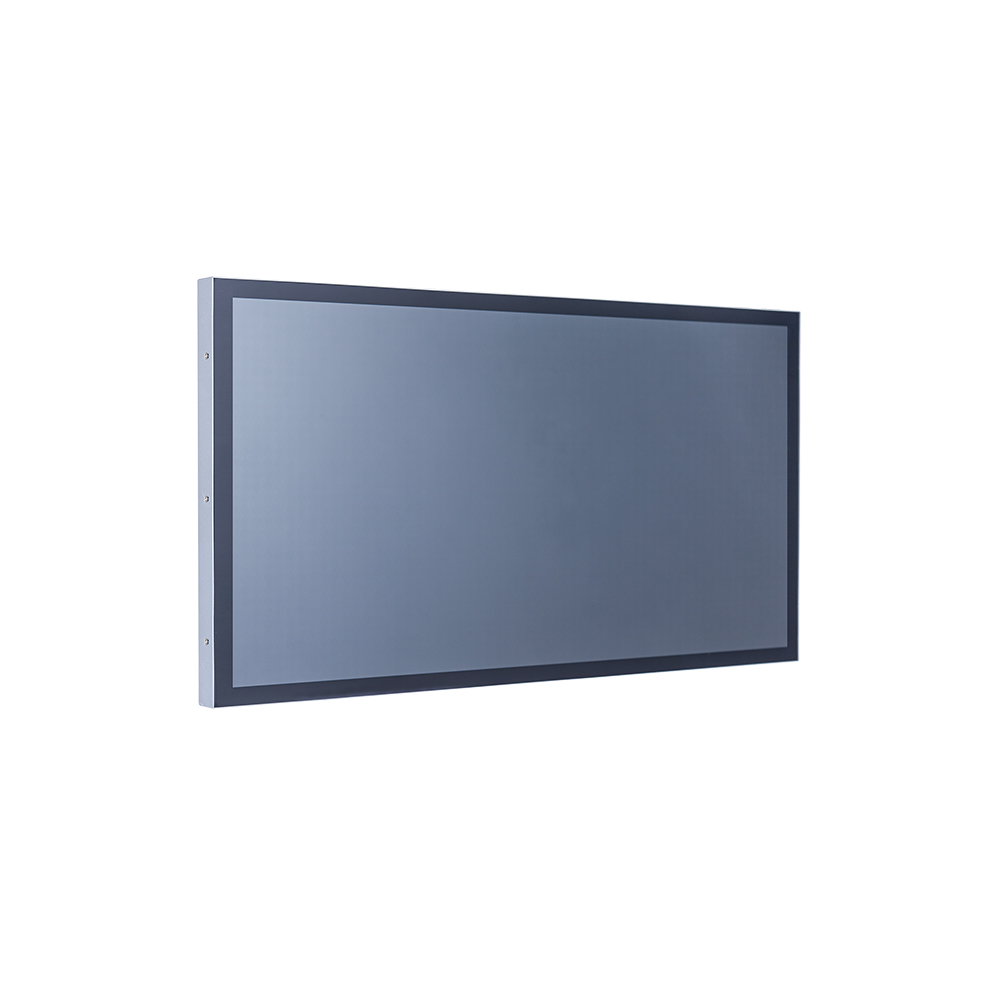

★ 10.1 inch Industrial LCD Panel, 1280x800 Resolution
★ Wide viewing angle 178°/178°
★ Wide-temperature LCD panel, operating temperature -20-60°C
★ Intel® 13th Generation Core i Series CPU
★ DDR4 8G RAM, Max to 32G
★ GbE LAN Port x2
★ 128G SSD, Max to 1T
★ USB 3.0 x6
★ Narrow-bezel true-flat PCAP touch screen
★ 7H Hardness tempered cover glass
★ 10-point multi-touch , supports Nextech stylus
★ Metal housing with multiple mounting options
★ Made in Taiwan, 3-year warranty, designed for harsh environments
★ Optional high brightness up to 1000nits for outdoor applications
★ Optional Privacy filter or antimicrobial surface treatment
| System Specifications | |
|---|---|
| CPU | Intel® Alder Lake-N97 Processor |
| Memory | DDR4 SO-DIMM, Max. Capacity 32G |
| Network | 2 * Intel® GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| Storage |
SATA3.0 7P Connector (With 1 * SATA Power Wafer)x1 M.2 Key-M Slot (PCIe x4/ SATA, Default PCIE 4x, Support PCIe x4 NVMe, 2280) x1 |
| Sound Chip | Realtek Audio HAD Codec |
| Rear I/O |
HDMI x1, DP x1 |
| Power Input | 12VDC-in |
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size |
10.1 inch |
| Visible Area | 216.96x135.6 mm |
| Resolution | 1280x800 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 500 nits |
| Contrast Ratio | 800:1 |
| Display Ratio | 16:10 |
| Pixel Pitch | 0.1695x0.1695 mm |
| Response Time | 29 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 hours |
| Operating Temp. | -20°~60°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.1±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

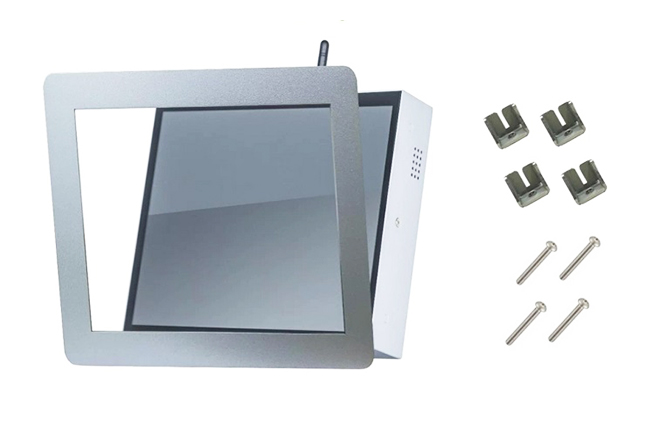

Open Frame Brackets |
Wall Mount Kits |

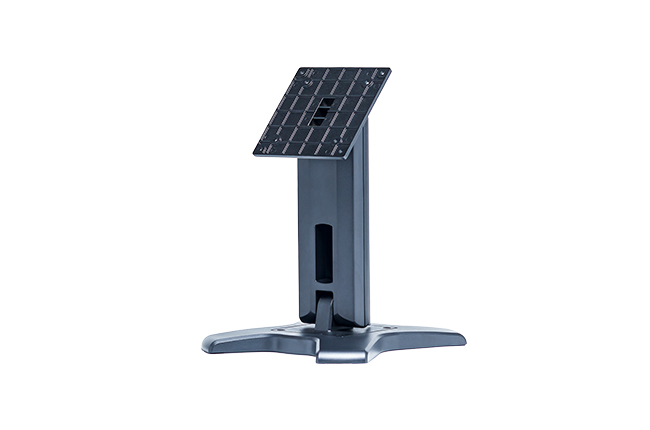

Desktop Stand B type |

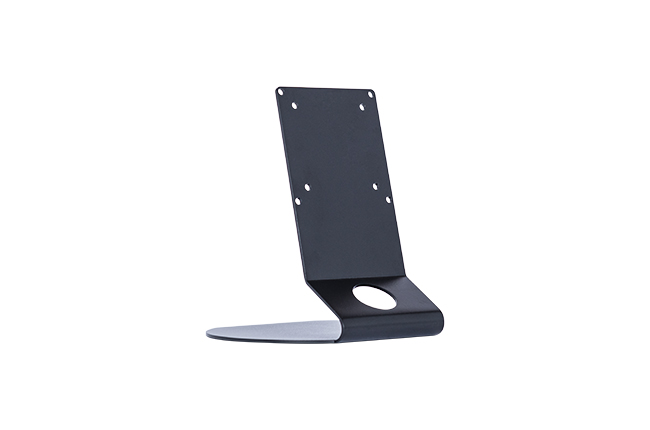

Desktop Stand L type |

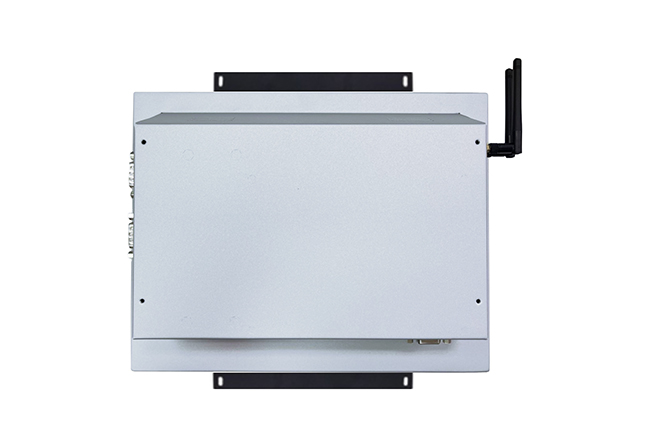

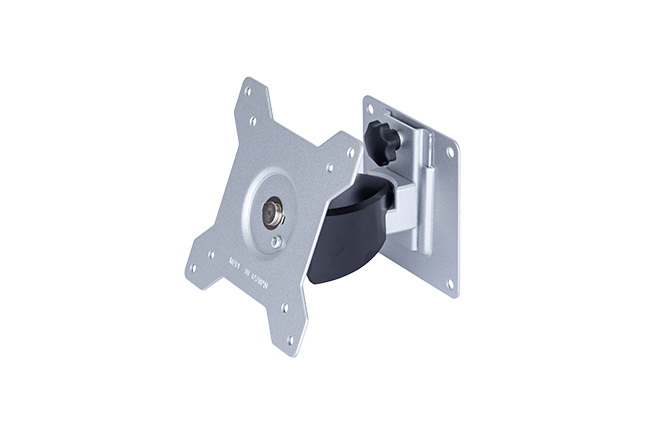

Wall Mount Bracket |

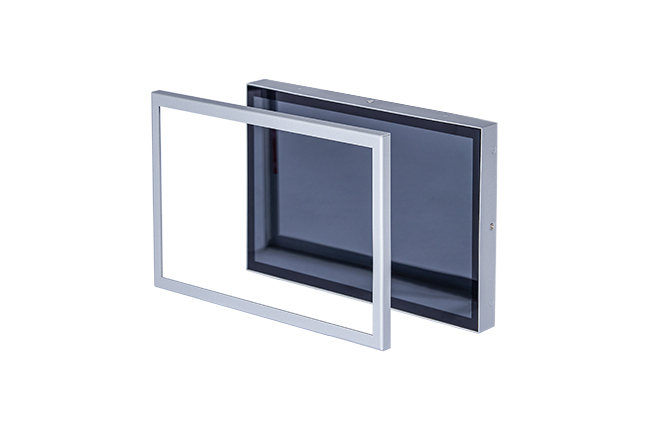

IP65 Front Cover |
