| Features |
|---|
★ Certified to CE/FCC/UL 60601 medical standards
★ 10.1”Panel, 1280x800 Resolution
★ Wide viewing angle 178°/178°
★ Operating Temperature Range -20-60℃
★ Narrow-bezel true-flat PCAP touch screen
★ Anti-glare UV-resistant tempered glass (7H hardness)
★ 10-point multi-touch , supports Nextech stylus
★ Aluminum housing with multiple mounting options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional remote control via DDC/CI
★ Optional Privacy filter or antimicrobial surface treatment
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 10.1 inch |
| Visible Area | 216.96x135.6 mm |
| Resolution | 1280x800 |
| Display Ratio | 16:10 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 400 nits |
| Contrast Ratio | 800:1 |
| Pixel Pitch | 0.1695x0.1695 mm |
| Response Time | 29 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 HRS |
| Operating Temp. | -20°~60°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 1.1±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

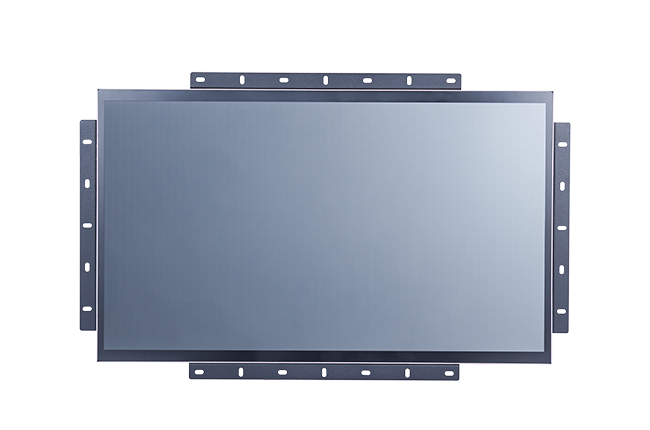

Open Frame Brackets |

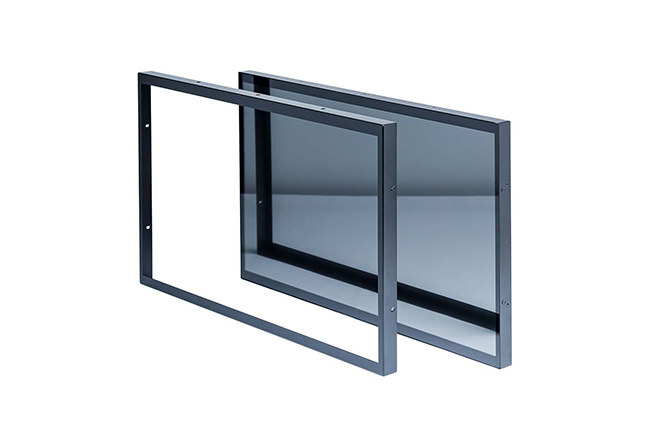

IP65 Waterproof Protection Front Frame |

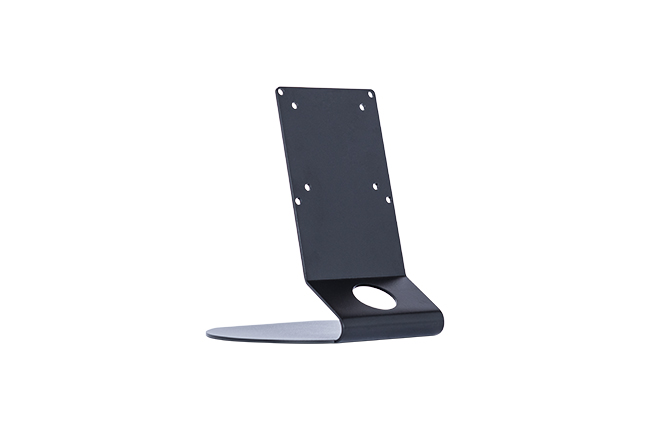

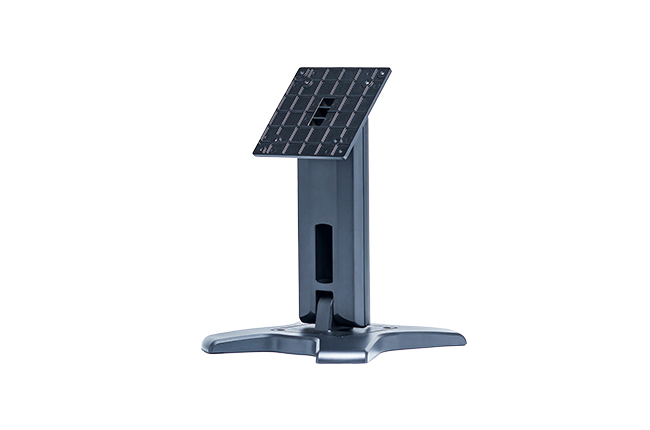

Desktop Stand B |
Desktop Stand L |

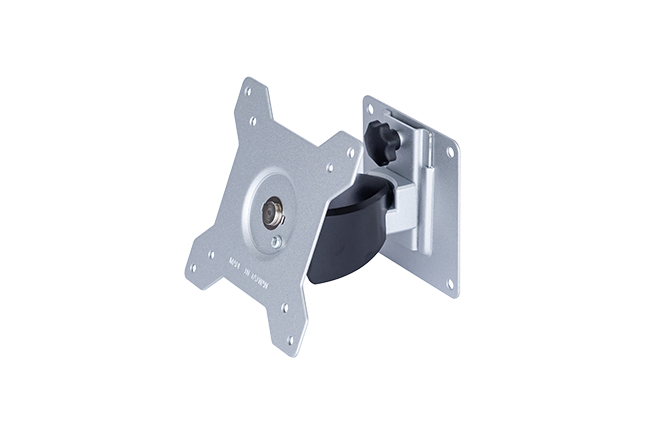

Wall Mount Bracket |

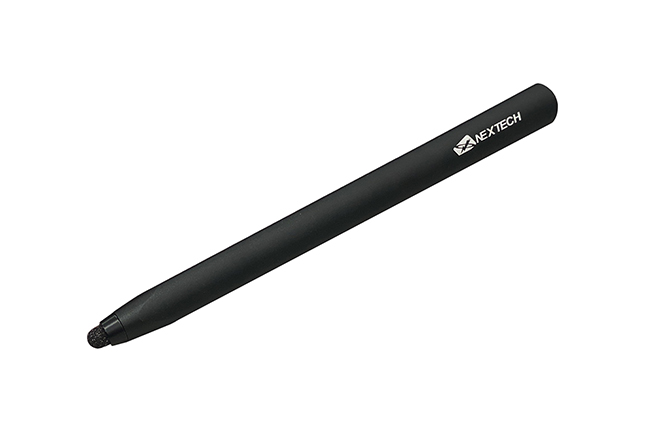

Passive Stylus |
| Product Specifications |
|---|
| NTMD101 V500 English Version |
| NTMD101 V500 Traditional Chinese Version |
| NTMD101 V500 Japanese Version |
