27" Panel PC ( Intel Alder Lake N97 )

Share:
Features

★ 27 inch Panel, 1920x1080 (FHD) Resolution
★ VA Wide Viewing Angle Technology (178°/178°)
★ Intel® Alder Lake N97 CPU
★ DDR4 8G RAM, Max to 16G
★ GbE LAN Port x2
★ 128G SSD, Max to 1T
★ HDMI Output x1, DP output x1
★ Realtek Audio HAD Codec,
★ RS485 Port x1, RS232 Port x6
★ USB 3.0 x4, USB 2.0 x2
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Optional High Brightness 1000nits, for Outdoor Environment
★ Optional Anti-Glare&UV/Antibacterial/Privacy Filter Surface Treatment


System Specifications
CPU Intel® Alder Lake-N97 Processor
Memory DDR4 SO-DIMM 8G, Max to 16G
Network

Intel i210-AT GbE Ethernet Controller x1

Intel i226-V GbE Ethernet Controller x1

Storage

 M.2 M-Key 2280, PCIE X1/SATA, Support PCIE X1

NVMe/SATA SSD, Auto Detect SATA3.0 6Gbps

Video Output

 Intel® UHD Graphics HDMI output x1,

Max. Resolution 4096x2160 @30Hz DP output x1,

Max. Resolution 4096x2160 @60Hz

Sound Chip Realtek Audio HAD Codec
Rear I/O

HDMI x1,DP x1

RJ45 LAN Ports x2

USB 3.0 x4, USB 2.0 x2

RS485 x1, RS232 x6

Line-Out + MIC 2in1 3.5mm Jack x1

Operating Temp. 0~60℃
Storage Temp. -20~75℃
Power Input 12VDC-in
Display Specification
Panel Process VA Mode, Normally Black
Display Size

27 inch

Visible Area 597.6x336.2 mm
Resolution 1920x1080 (FHD)
Color Depth 16.7M Colors
Brightness (nits) 300 / (Optional) 1000
Contrast Ratio 3000:1
Pixel Pitch 264x264 um
Response Time 5 msec.
Viewing Angle 178°/178°
Backlight LED (white LED)
Backlight Lifetime >30000 hours
Operating Temp. 0°~50°C
Storage Temp. -20°~60°C
Touch Specification
Touch Technology Projected Capacitive
Allowed Touch Points 10 points
Thickness of Cover Lens  2.9±0.2mm
Hardness of Cover Lens 7H
Accuracy 99.00%
Transparency ≧87%
IK Ratings IK07
Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_J38uIagPRd

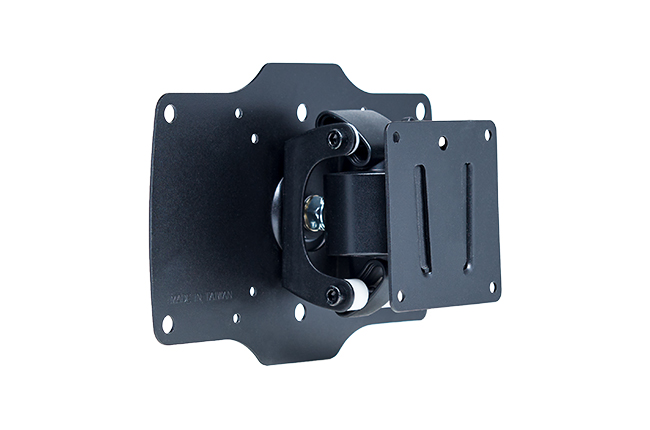

Wall Mount Bracket
ALL_catalog_24B07_QSal7cfUvr
Camera
ALL_catalog_24B07_zZDGvrYMqD
Can be mounted horizontally or vertically
ALL_catalog_24B07_7EnjHDfXJZ
Passive Stylus
ALL_catalog_24B07_eZj5vSxbi4
IP65 Waterproof Protection Front Frame
ALL_catalog_24B07_JBcA4klMlI
Desktop Stand B Type
ALL_catalog_24B07_eZj5vSxbi4

ALL_catalog_24B07_JBcA4klMlI
