| Features |
|---|

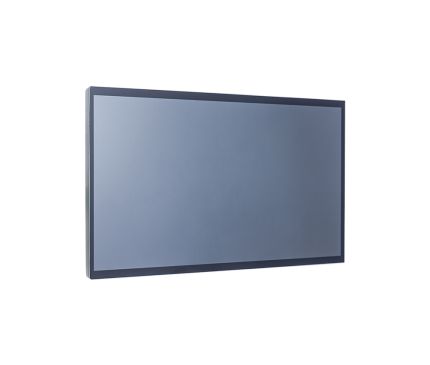

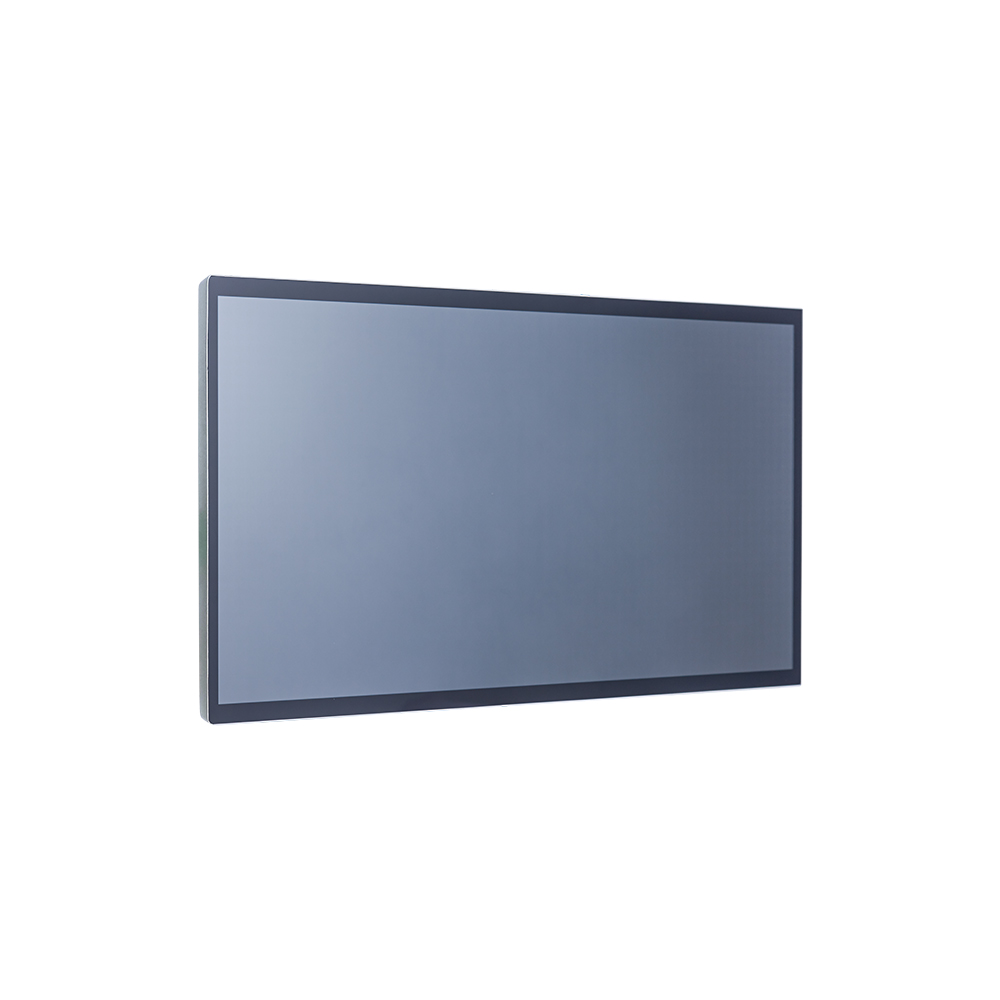

★ 23.8”wide LCD panel 1920x1080 (FHD)
★ Wide viewing angle 178°/178°
★ Narrow-bezel true-flat PCAP touch screen
★ Tempered glass (7H hardness)
★ 10-point multi-touch , supports Nextech stylus
★ Integrated USB-C connectivity via a single cable

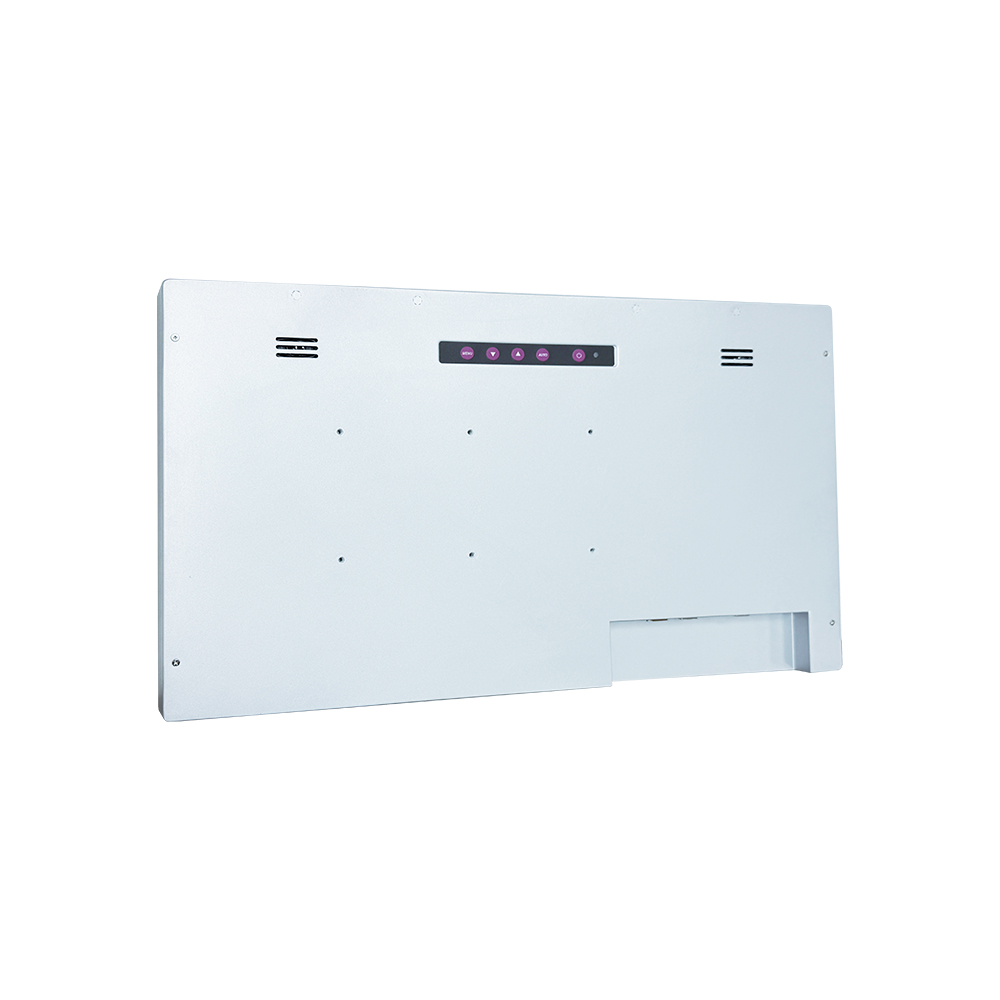

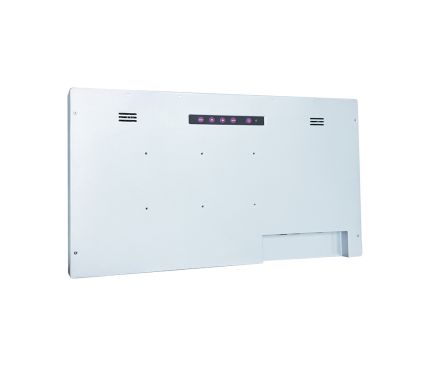

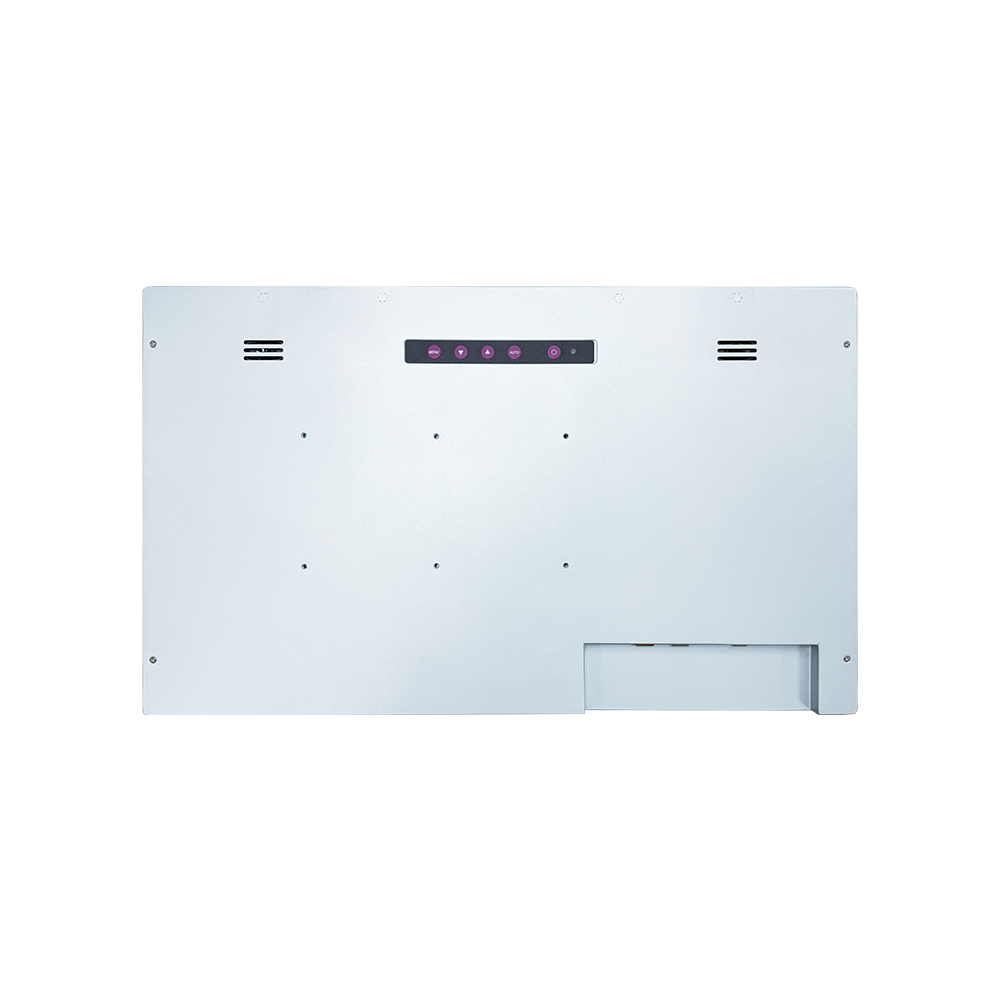

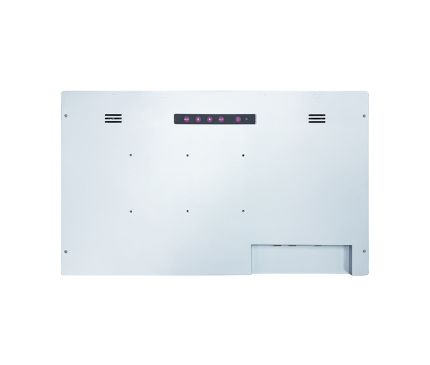

★ Metal housing with multiple mounting options
★ Made in Taiwan, 3-year warranty
★ Optional Anti-Glare&UV/Antibacterial/Privacy Filter Surface Treatment
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 23.8 inch |
| Visible Area | 527.04x296.46 mm |
| Resolution | 1920x1080 (FHD) |
| Display Ratio | 16:9 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 250 nits |
| Contrast Ratio | 3000:1 |
| Pixel Pitch | 274.5x274.5 um |
| Response Time | 16 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime |
>30000 HRS |
| Operating Temp. | 0°~50°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.9±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

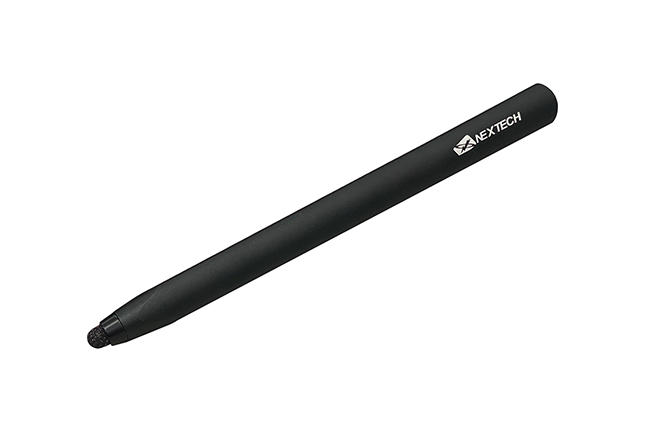

Passive Stylus |

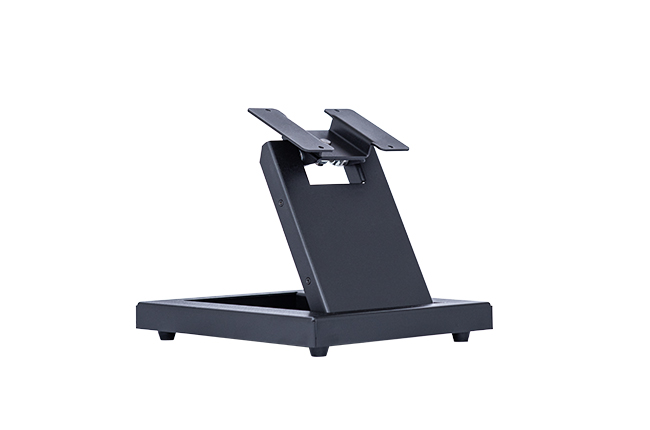

Desktop Stand B type |

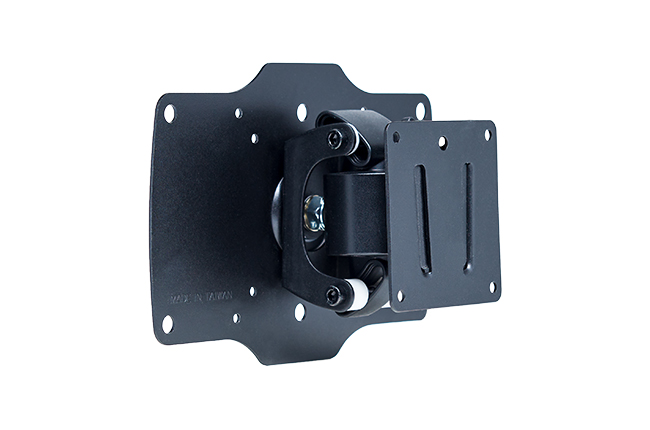

Wall Mount Bracket |

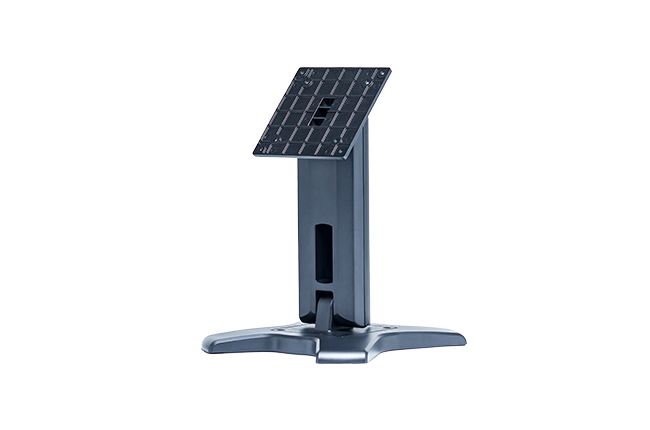

Desktop Stand Z type |
