| Features |
|---|
★ 32”wide LCD panel 1920x1080 (FHD)
★ Wide viewing angle 178°/178°
★ Maximum brightness up to 2500 nits (optional)
★ Full IP68 / IP69K-rated water and dust protection
★ Stainless steel enclosure
★ Anti-glare and UV-resistant surface treatment
★ HDMI video input
★ Projected capacitive (PCAP) touch (optional)
★ Ambient light sensor with automatic brightness adjustment (optional)
★ Made in Taiwan, 3-year warranty
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 32 inch |
| Visible Area | 698x392.85 mm |
| Resolution | 1920x1080 (FHD) |
| Display Ratio | 16:9 |
| Color Depth | 16.7M |
| Brightness (nits) | 400 nits / (Optional) 500 / 1500 / 2500 nits |
| Contrast Ratio | 4000:1 |
| Pixel Pitch | 0.3637x0.3637 mm |
| Response Time | 8 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | 0°~50°C |
| Storage Temp. | -20~60℃ |
| Touch Options (Projected Capacitive) | |||
|---|---|---|---|
| Technology | Projected Capacitive | Transparency | ≧87% |
| Allowed Touch Points | 10 points | Surface Treatment | AG Coating |
| Interface | USB | Thickness of Cover Lens | 3.0±0.2mm |
| IK Ratings | IK07 | Hardness of Cover Lens | 7H |
| Touch Options (Resistive) | |||
|---|---|---|---|
| Technology | Resistive | Transparency | 80%±5% |
| Allowed Touch Points | Single point | Surface Treatment | AG Coating |
| Interface | USB | Hardness of Cover Lens | ≧3H |
| Optional Accessories | |
|---|---|
Wall Mount Bracket |
Cart |
KIOSK set |

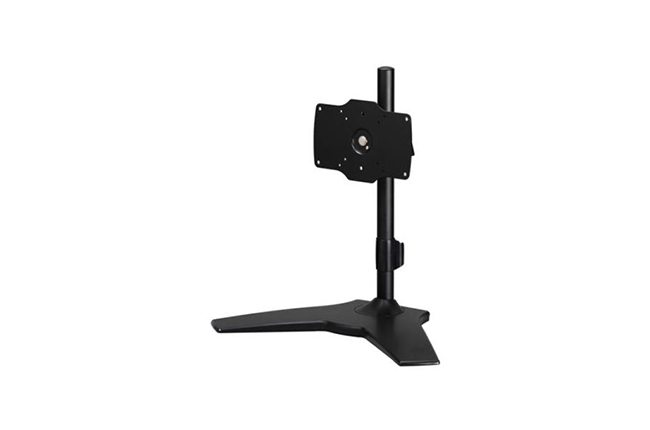

Desktop Stand |
