| Features |
|---|
★ Certified to CE/FCC/UL 60601 medical standards

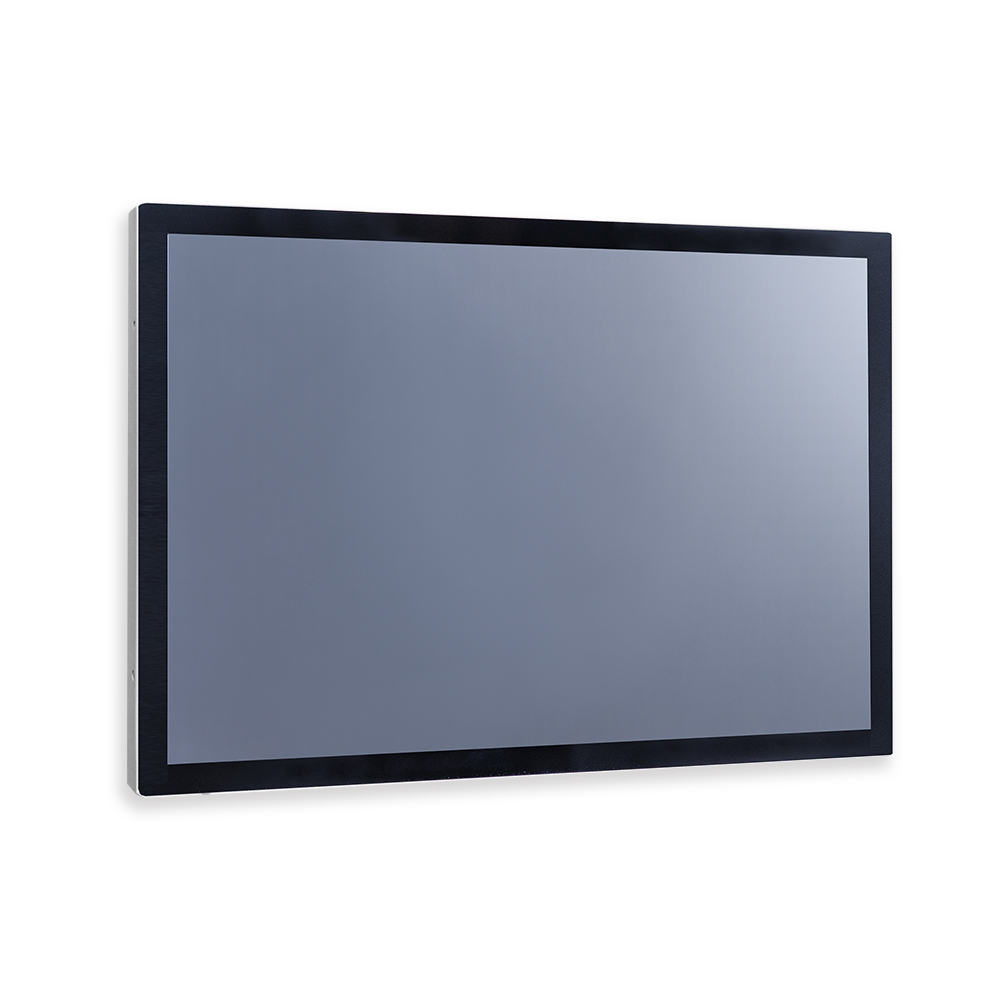

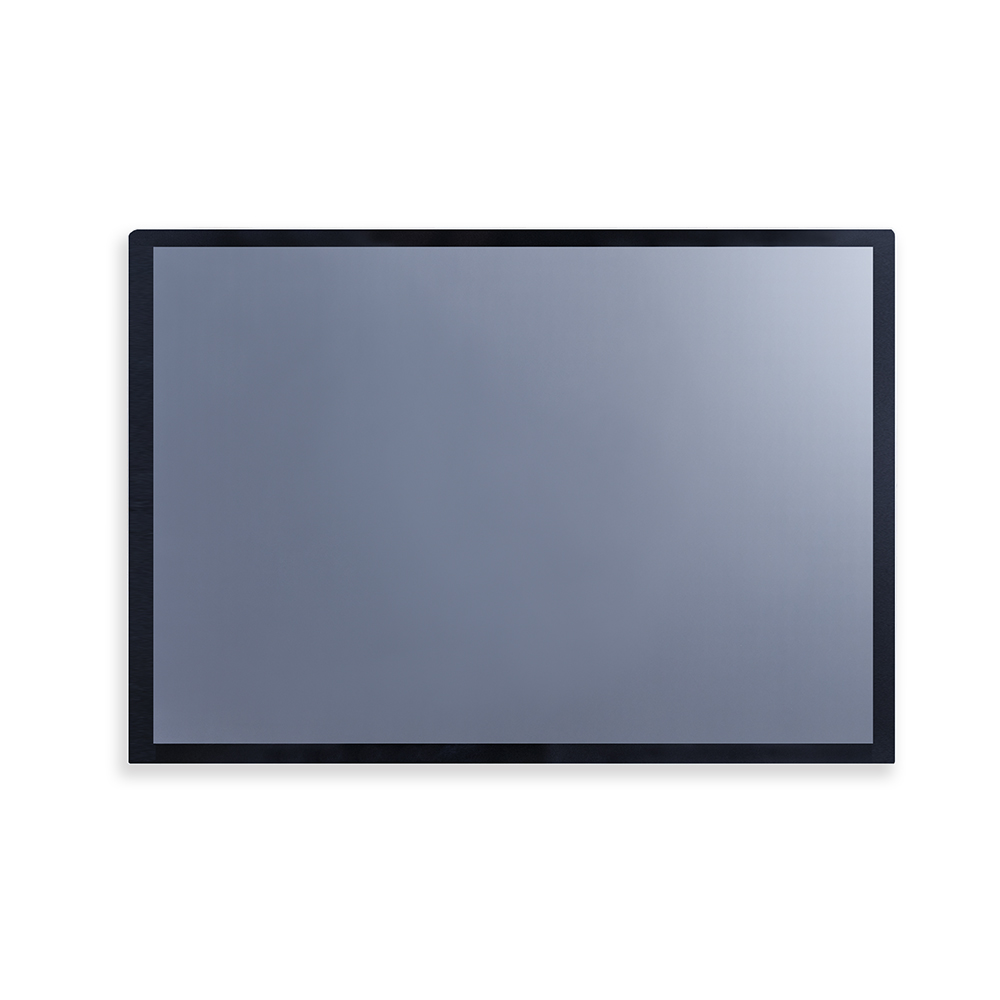

★ 10.4”Panel, 1024x768 Resolution
★ Wide viewing angle 176°/176°
★ Operating Temperature Range -30-85℃
★ Narrow-bezel true-flat PCAP touch screen
★ Anti-glare UV-resistant tempered glass (7H hardness)
★ 10-point multi-touch , supports Nextech stylus

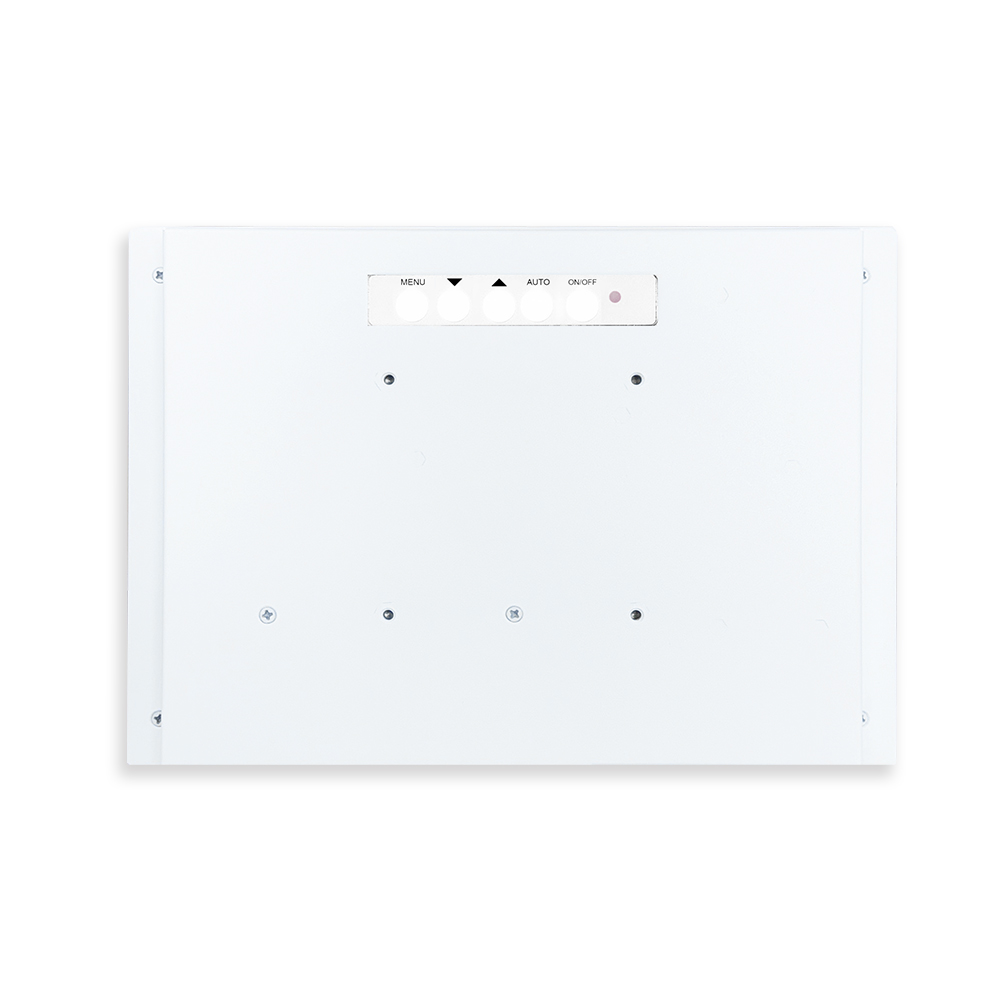

★ Aluminum housing with multiple mounting options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional remote control via RS-232 or DDC/CI
★ Optional high brightness up to 1500nits for outdoor applications
★ Optional Ambient light sensor with automatic brightness adjustment
★ Optional Privacy filter or antimicrobial surface treatment
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 10.4 inch |
| Visible Area | 210.4x157.8 mm |
| Resolution | 1024x768 (XGA) |
| Display Ratio | 4:3 |
| Color Depth | 16.2M Colors |
| Brightness (nits) | 500 / (Optional) 1000 / (Optional) 1500 nits |
| Contrast Ratio | 1000:1 |
| Pixel Pitch | 0.0685x0.2055 mm |
| Response Time | 25 msec. |
| Viewing Angle | 176°/176° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | -30°~85°C |
| Storage Temp. | -30°~85°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.9±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

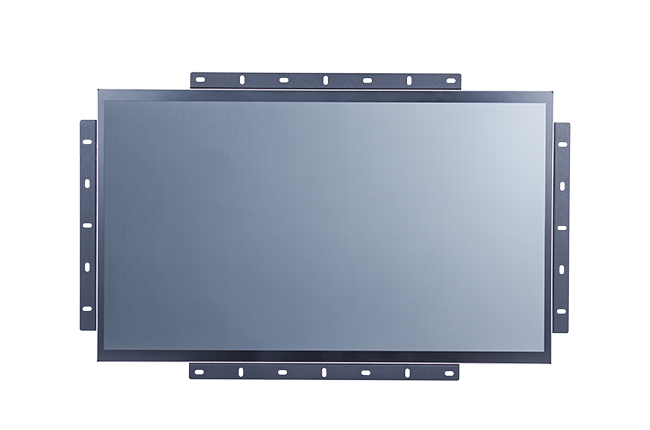

Open Frame Brackets |

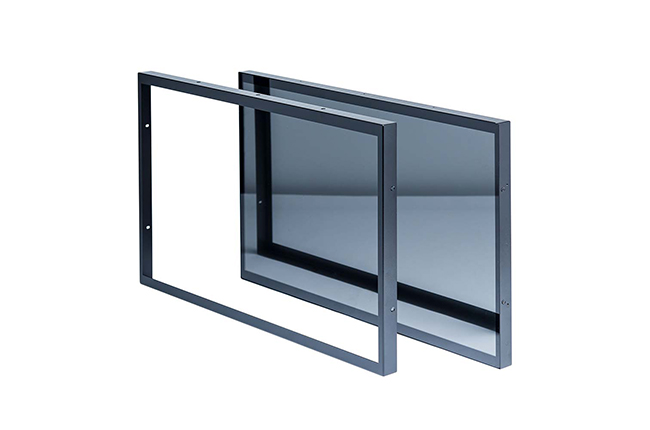

IP65 Waterproof Protection Front Frame |

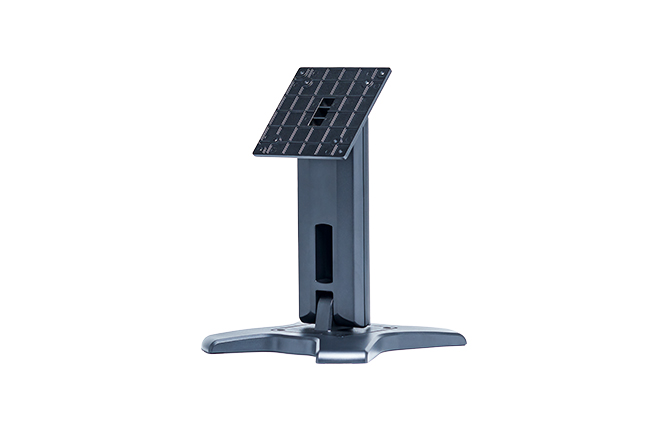

Desktop Stand B |

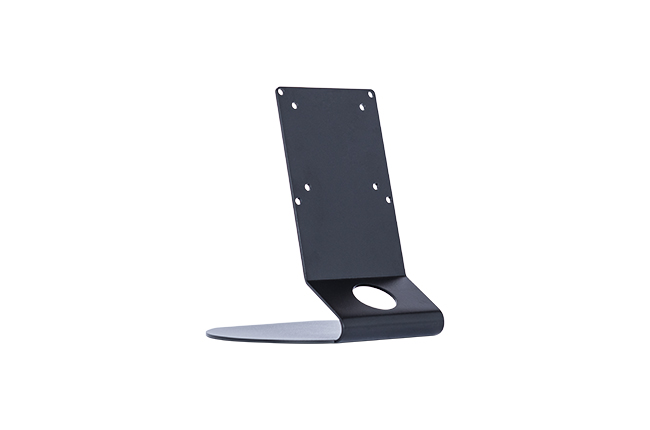

Desktop Stand L |

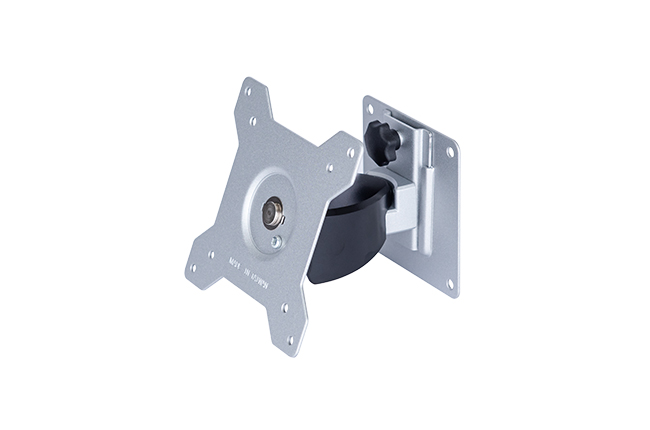

Wall Mount Bracket |

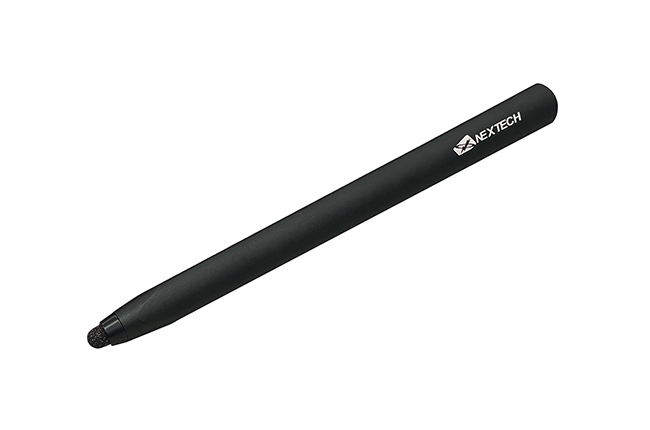

Passive Stylus |
