| Features |
|---|
★ 32 inch, 1920x1080 (FHD) Resolution
★ Wide Viewing Angle (178°/178°)
★ Intel® 13th Generation Core i Series CPU
★ DDR4 8G RAM, Max to 32G
★ GbE LAN Port x2
★ 128G SSD, Max to 1T
★ Realtek Audio HAD Codec,
★ RS485 Port x1, RS232 Port x6
★ USB 3.0 x6
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Optional High Brightness 2500nits, for Outdoor Environment
★ Optional Anti-Glare&UV/Antibacterial/Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Intel® Core i U Series Processor |
| Memory | DDR4 SO-DIMM, Max. Capacity 32G |
| Network | 2 * Intel® GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| Storage |
SATA3.0 7P Connector (With 1 * SATA Power Wafer)x1 M.2 Key-M Slot (PCIe x4/ SATA, Default PCIE 4x, Support PCIe x4 NVMe, 2280) x1 |
| Sound Chip | Realtek Audio HAD Codec |
| Rear I/O |
HDMI x1, DP x1 RJ45 LAN Ports x2 USB 3.0 x6 RS485 x1, RS232 x6 Line-Out + MIC 2in1 3.5mm Jack x1 |
| Operating Temp. | 0~60℃ |
| Storage Temp. | -20~75℃ |
| Power Input | 100~240VAC |
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size |
32 inch |
| Visible Area | 698.4x392.9 mm |
| Resolution | 1920x1080 (FHD) |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 400 / (Optional) 500 / (Optional) 1500 / (Optional) 2500 nits |
| Contrast Ratio | 4000:1 |
| Display Ratio | 16:9 |
| Pixel Pitch | 121.25x363.75 um |
| Response Time | 8 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 hours |
| Operating Temp. | 0°~50°C |
| Storage Temp. | 5~40℃ |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 3.0±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Wall Mount Kit |
KIOSK |

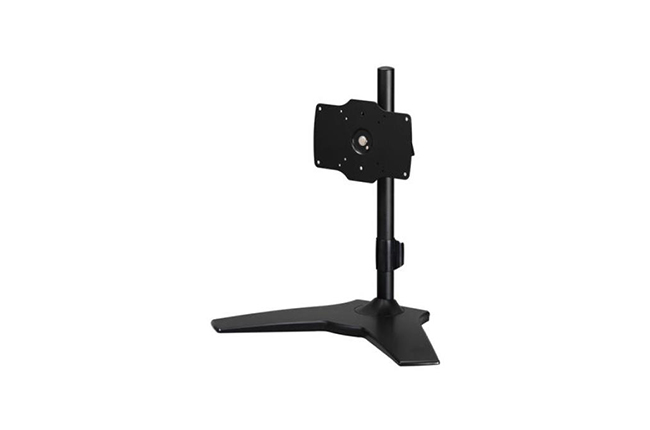

Desktop Stand |
Cart |

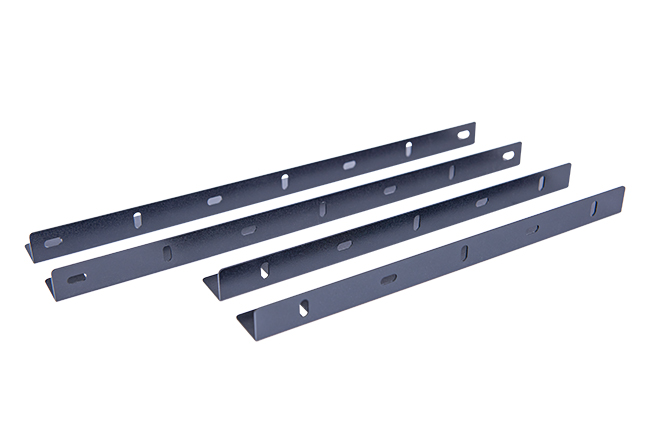

Open frame Bracket |

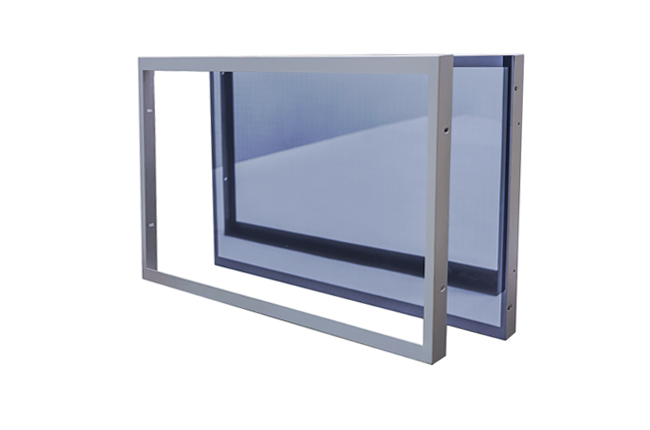

Front Cover |
Passive Stylus |
 |
