| Features |
|---|
★ 17.3 inch Industrial Grade Panel, 1920x1080 (FHD) Resolution
★ 1200nits High Brightness
★ Wide Viewing Angle Technology (176°/176°)
★ Operating Temperature Range -30~80°C
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional Software Remote Control by RS232 or DDC/CI

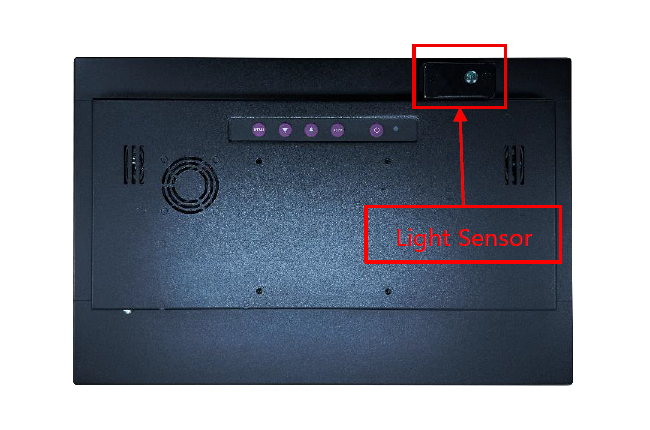

★ Optional Auto Dimming Function (with Light Sensor)
★ Optional Anti-Glare&UV/Antibacterial/Privacy Filter Surface Treatment
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 17.3 inch |
| Visible Area | 381.9x214.8 mm |
| Resolution | 1920x1080 (FHD) |
| Display Ratio | 16:9 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 1200 nits |
| Contrast Ratio | 1700:1 |
| Pixel Pitch | 0.1995x0.1995 mm |
| Response Time | 35 msec. |
| Viewing Angle | 176°/176° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >50000 HRS |
| Operating Temp. | -30°~80°C |
| Storage Temp. | -40°~85°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 2.75±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|
Open Frame Brackets |
IP65 Waterproof Protection Front Frame |
Desktop Stand B type |
Desktop Stand Z type |
Wall Mount Bracket |
Passive Stylus |
Panel Mount Kits |
Auto Dimming (Magnetically-attached) |
