NTSM104-1 NTSM104-2 NTSM104-3 NTSM104-4

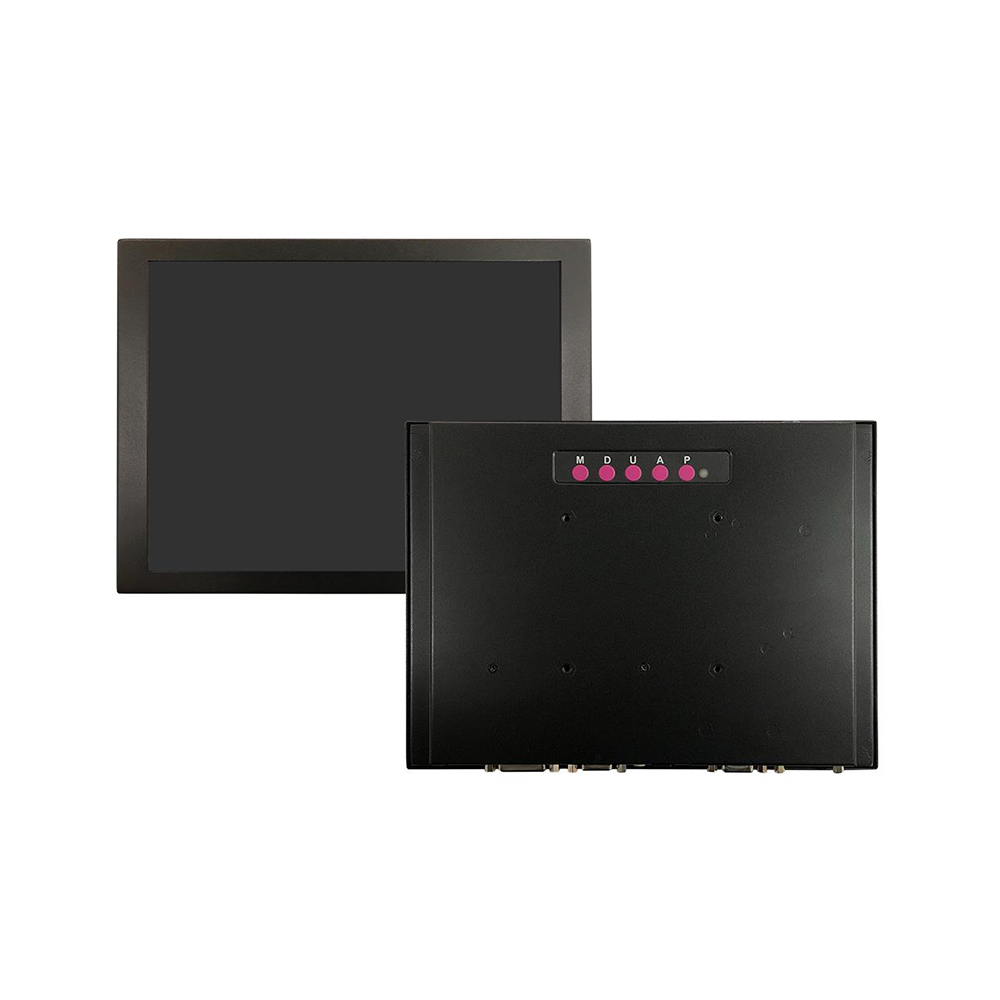

M Series 10.4" Industrial Monitor

Share：
Add to inquiry
Features

★ 10.4 inch Industrial Grade Panel, 1024x768 Resolution
★ IAV Wide Viewing Angle Technology, 176°/176°
★ Wide Operating Temperature Range -30~ 85℃
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Resistive/Capacitive Touch Options, Supports NEXTECH Exclusive Stylus
★ Optional Video Input (VGA/DVI/HDMI/DP)
★ Optional Software Remote Control by RS232 or DDC/CI
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/ Antibacterial /Privacy Filter Surface Treatment


Display Specification
Panel Process IAV Mode, Normally Black
Display Size 10.4 inch
Visible Area 210.4x157.8 mm
Resolution 1024x768 (XGA)
Display Ratio 4:3
Color Depth 16.2M Colors
Brightness (nits) 500 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio 1000:1
Pixel Pitch 0.0685x0.2055 mm
Response Time 25 msec.
Viewing Angle 176°/176°
Backlight LED (white LED)
Backlight Lifetime >50000 HRS
Operating Temp. -30°~85°C
Storage Temp. -30°~85°C

Optional Accessories
Open Frame Brackets
ALL_catalog_24B07_zZDGvrYMqD		 Panel Mount Kits
ALL_catalog_24B07_7EnjHDfXJZ
Desktop Stand B type
ALL_catalog_24B07_zZDGvrYMqD		 Desktop Stand L type
ALL_catalog_24B07_7EnjHDfXJZ
Wall Mount Bracket
ALL_catalog_24B07_zZDGvrYMqD
ALL_catalog_24B07_7EnjHDfXJZ
