| Features |
|---|
★ Certified to CE/FCC/UL 60601 medical standards
★ 27”wide LCD panel 1920x1080 (FHD)
★ Wide viewing angle 178°/178°
★ Narrow-bezel true-flat PCAP touch screen
★ Anti-glare UV-resistant tempered glass (7H hardness)
★ 10-point multi-touch , supports Nextech stylus
★ Aluminum housing with multiple mounting options
★ Made in Taiwan, 3-year warranty
★ Power input options : 12VDC / 9–36VDC / 100–240VAC
★ Optional remote control via RS-232 or DDC/CI
★ Optional high brightness up to 1000nits for outdoor applications
★ Optional Ambient light sensor with automatic brightness adjustment
★ Optional Privacy filter or antimicrobial surface treatment
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size | 27 inch |
| Visible Area | 597.6x336.15 mm |
| Resolution | 1920x1080 (FHD) |
| Display Ratio | 16:9 |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 300 / (Optional) 1000 nits |
| Contrast Ratio | 3000:1 |
| Pixel Pitch | 311.25x311.25 um |
| Response Time | 12 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 HRS |
| Operating Temp. | 0°~50°C |
| Storage Temp. | -20°~60°C |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 3.0±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

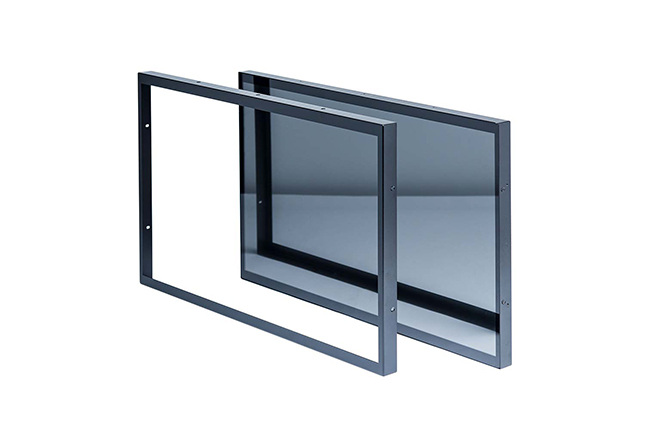

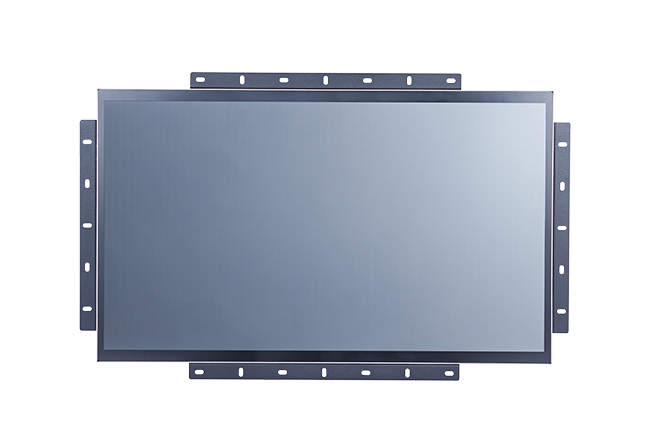

Open Frame Brackets |
IP65 Waterproof Protection Front Frame |

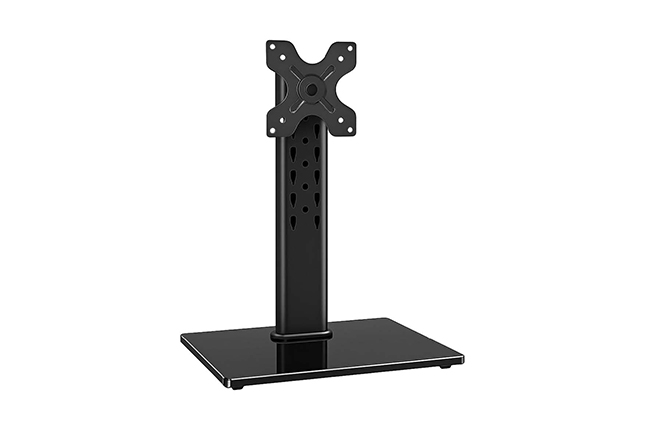

Desktop Stand |

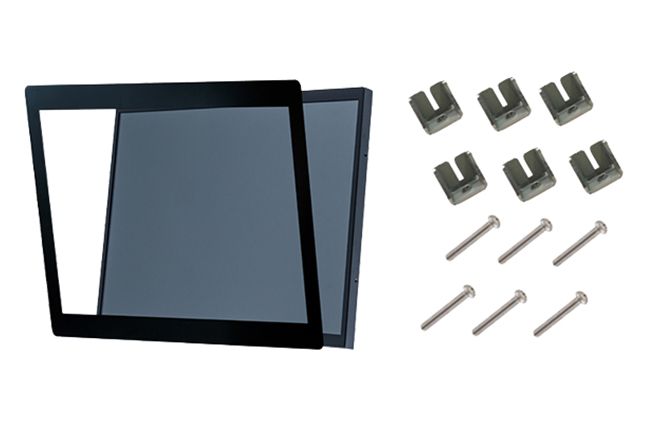

Panel Mount Kits |

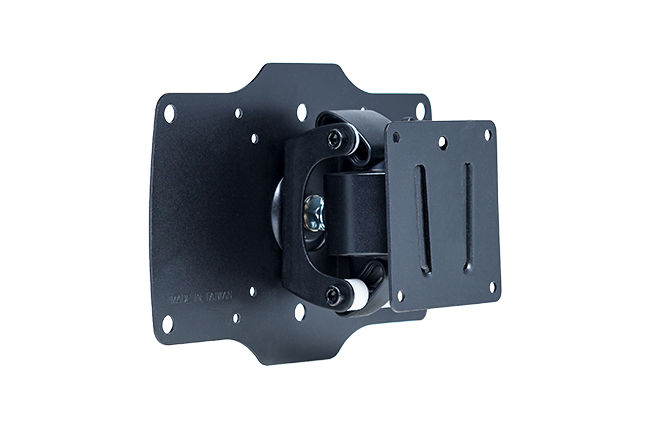

Wall Mount Bracket |

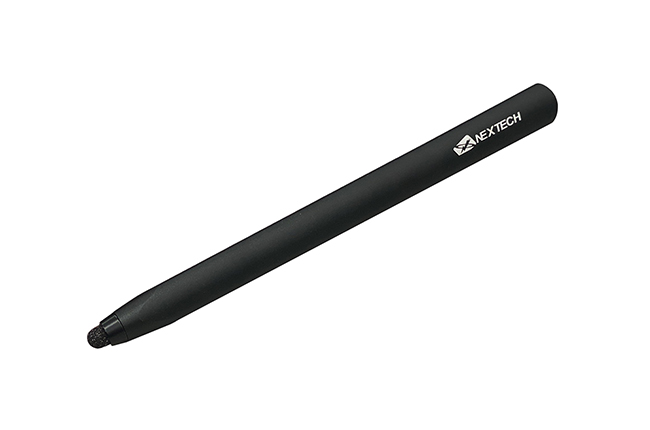

Passive Stylus |
| Product Specifications |
|---|
| NTMD270 V600 English Version |
| NTMD270 V600 Traditional Chinese Version |
| NTMD270 V600 Japanese Version |
