| Features |
|---|

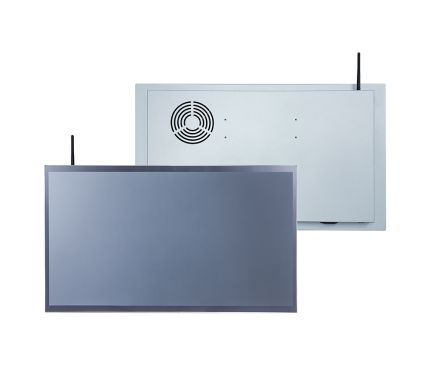

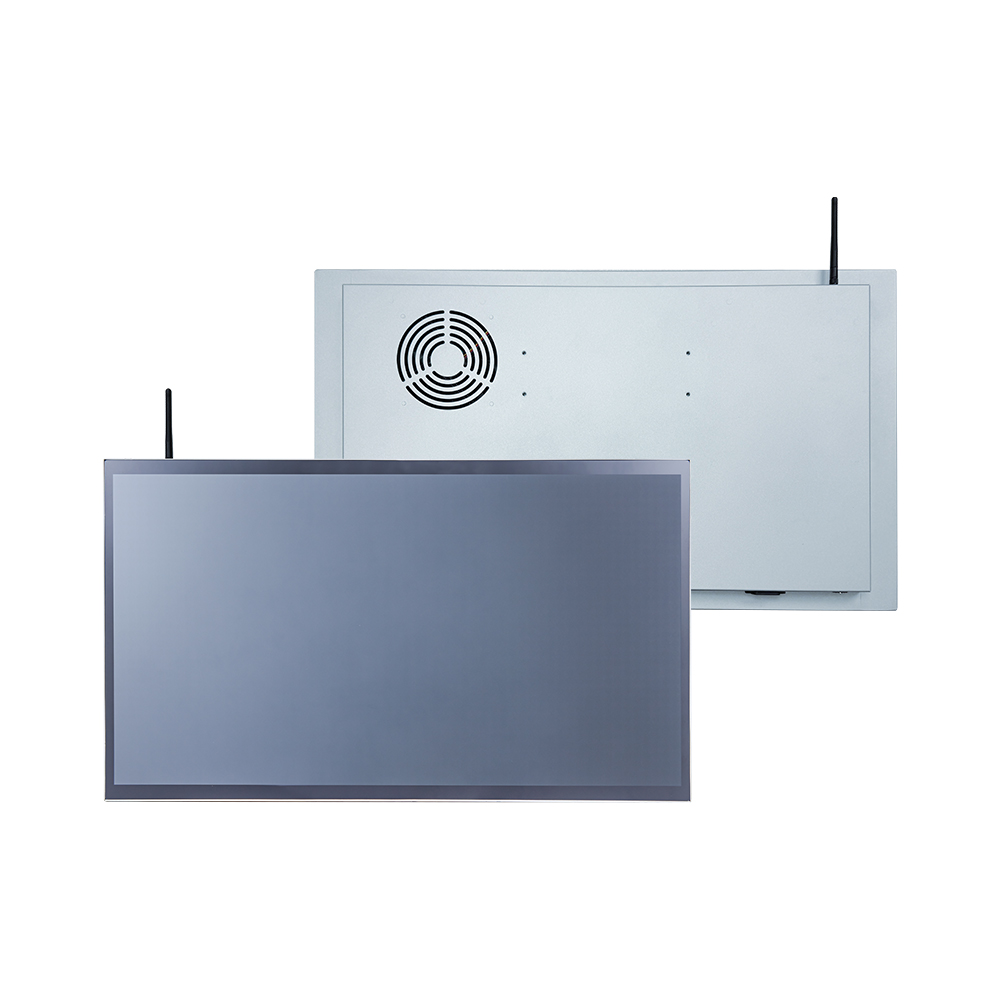

★ 32 inch, 1920x1080 (FHD) Resolution
★ Wide Viewing Angle (178°/178°)
★ Rockchip RK3588, 4*Cortex-A76 + 4*Cortex-A55
★ On Board DDR4 8G Memory
★ On Board 64 Flash ROM
★ Android 14

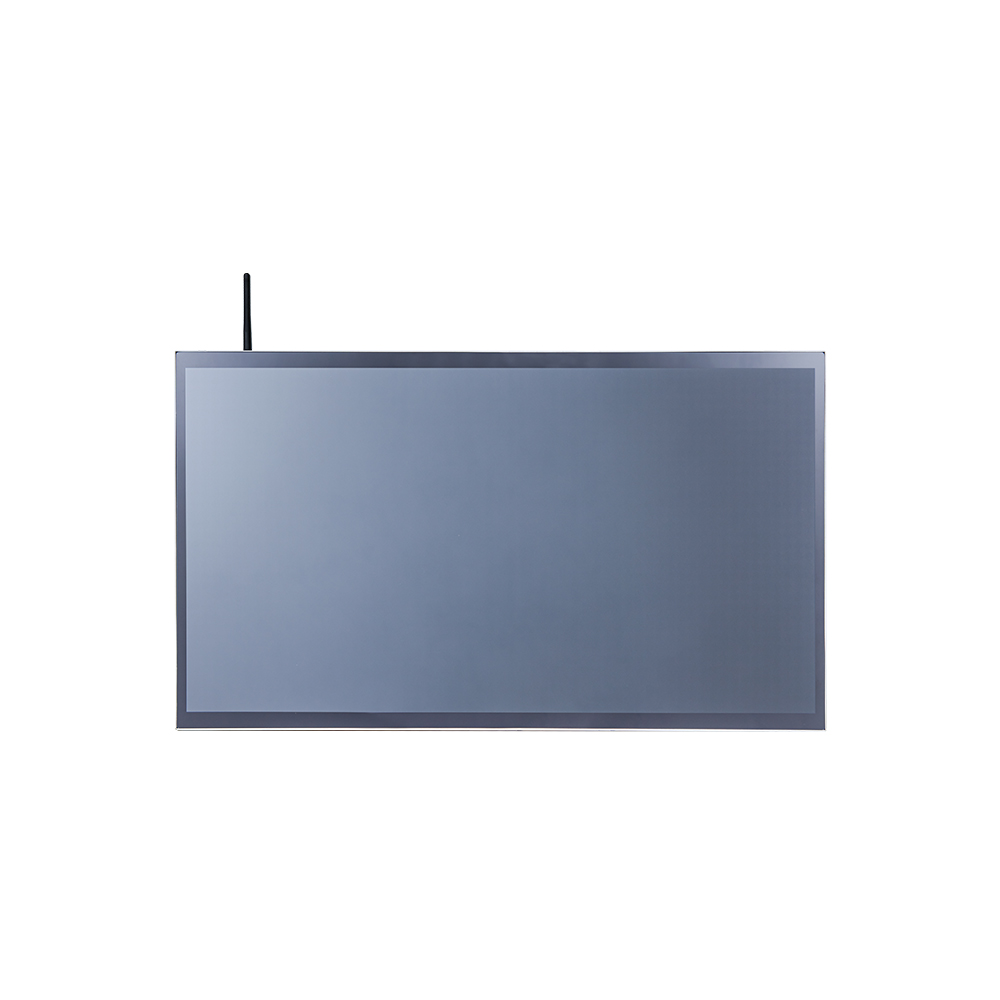

★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch, Supports NEXTECH Dedicated Stylus

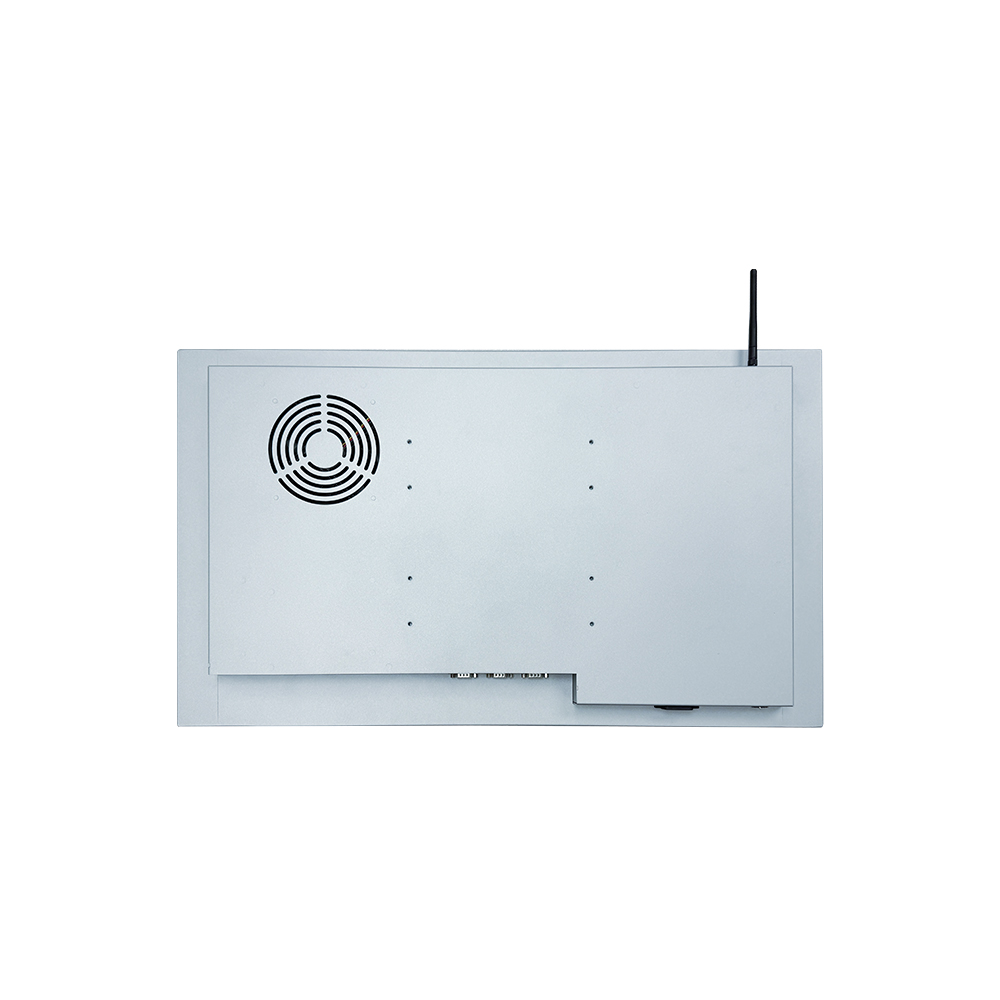

★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Optional High Brightness 2500nits，for Outdoor Environment
★ Optional AG Coating/Anti-UV/Antibacterial/Privacy Filter Surface Treatment
| System Specifications | |
|---|---|
| CPU | Rock Chip ARM RK3588, 4*Cortex-A76 + 4*Cortex-A55 |
| Memory | DDR4 8G |
| Storage | 64G Flash ROM |
| Sound Chip | Everest ES8336 Codec |
| Physical Network |
Realtek RTL8211F GbE Ethernet Controller Realtek RTL8211H GbE Ethernet Controller |
| Wireless Network | 2.4GHz/5GHz WIFI+ Bluetooth 5.3 |
| OS | Android 14 |
| Display Specification | |
|---|---|
| Panel Process | Normally Black |
| Display Size |
32 inch |
| Visible Area | 698x392.85 mm |
| Resolution | 1920x1080 (FHD) |
| Color Depth | 16.7M Colors |
| Brightness (nits) | 400 / (Optional) 500 nits / (Optional) 1500 nits/ (Optional) 2500 nits |
| Contrast Ratio | 1200:1 |
| Display Ratio | 16:9 |
| Pixel Pitch | 121.25x363.75 um |
| Response Time | 8 msec. |
| Viewing Angle | 178°/178° |
| Backlight | LED (white LED) |
| Backlight Lifetime | >30000 hours |
| Operating Temp. | 0°~50°C |
| Storage Temp. | 5~40℃ |
| Touch Specification | |
|---|---|
| Touch Technology | Projected Capacitive |
| Allowed Touch Points | 10 points |
| Thickness of Cover Lens | 3.0±0.2mm |
| Hardness of Cover Lens | 7H |
| Accuracy | 99.00% |
| Transparency | ≧87% |
| IK Ratings | IK07 |
| Optional Accessories | |
|---|---|

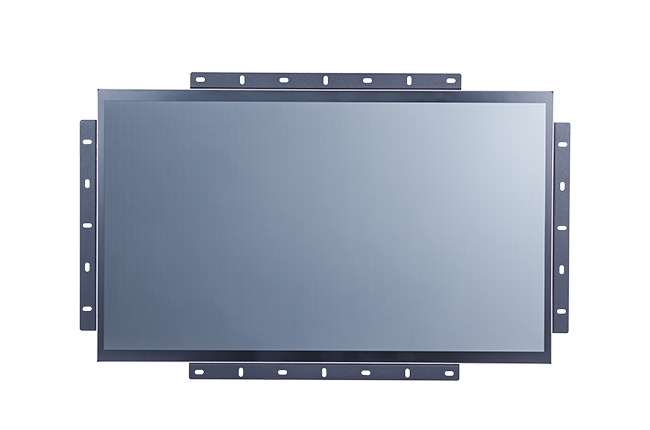

Open Frame Brackets |

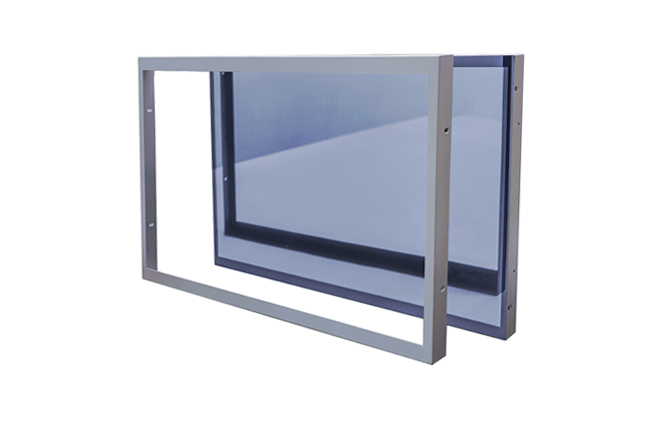

IP65 Waterproof Protection Front Frame |

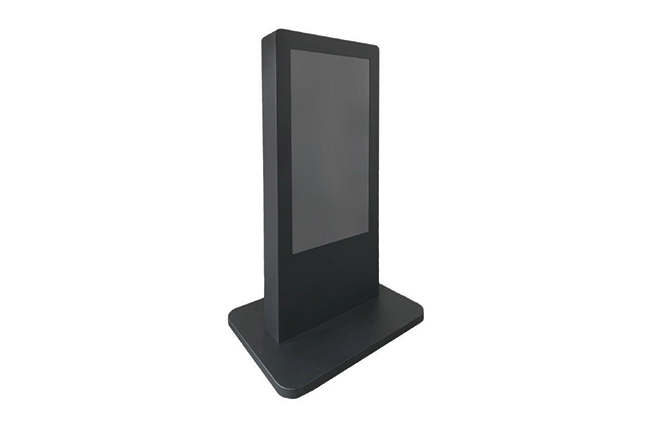

KIOSK |
Stand |
Open Frame Brackets |

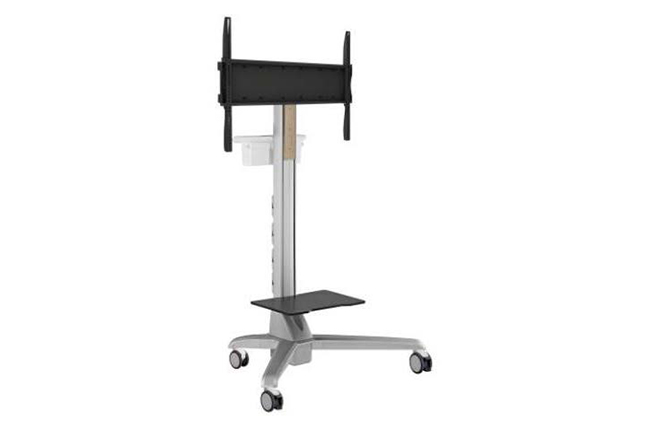

Cart |

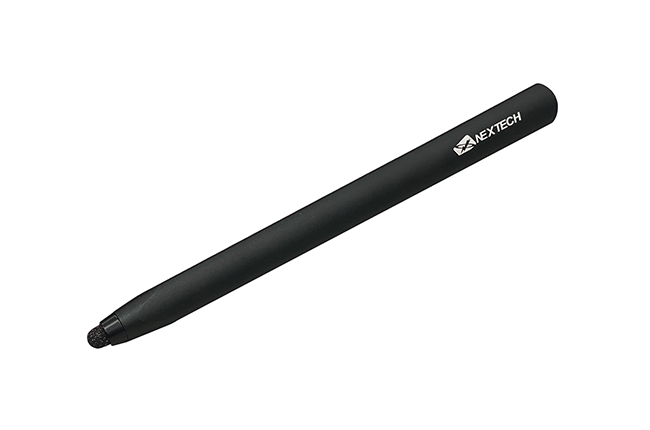

Passive Stylus |
 |
